规格参数


全长/不含发动机: 24' 9"
全长含发动机: 26' 10"
宽: 8' 6"
吃水船体: 16"
吃水含发动机: 28"
艉板角度: 20°
仰角平均数: 30°
艉板高度: 30"
重量(不含发动机,近似): 5,250 Ibs
最大马力: 300HP
燃油箱: 100 gal
水箱: 20 gal
飞桥高度含硬顶: 8' 6"
鱼箱容量: 69 gal
活鱼舱容量: 26 gal
后甲板空间: 91 ft²

标准配置

  • CONSTRUCTION

  • ❖ Unsinkable
  • ❖ Lifetime hull warranty and 5 year stem-to-stern warranty
  • ❖ Variable deadrise deep v-hull
  • ❖ Patented closed molded RAMCAP® construction process
  • ❖ NMMA Certified
  • ❖ Self-bailing cockpit
  • ❖ No wood construction
  • ❖ High density, closed cell, structural foam floatation
  • ❖ Hull laminate - premium gel coat, vinyl-ester barrier coat, vinyl-ester skin coat, polyester print barrier and knitted bi-axle fiberglass
  • ❖ High density PVC composite transom
  • ❖ Hull liner and deck mated perfectly for a rigid one-piece construction, adding to its long term durability
  • ❖ Hull liner completely finished inside with Class A surface
  • ❖ Molded-in diamond non-skid
  • ❖ Rigging troughs - molded-in and oversized for easy access
  • ❖ ABS backing used to receive self tapping screws and bolts
  • ❖ Aluminum fame work - custom fabricated in house meeting stringent standards, sand blasted then powder coated using premium marine grade materials
  • ❖ Wire harnesses - manufactured in house using marine grade, tinned copper wire, high grade heat shrink connectors and waterproof deutsch plugs
  • ❖ Circuit protection - circuit breakers or fuses protect all electrical circuits
  • ❖ Heavy-duty rub rail with 316 stainless steel insert and end caps
  • ❖ 316 cast stainless steel and chrome plated fasteners for additional corrosion and stain resistance
  • ❖ All hardware bedded or gasketed to resist corrosion
  • ❖ Stainless steel hinges and latches
  • ❖ Upholstery - extra heavy vinyl with acrylic top coat, Tenara™ thread, and anti-mildew backing - adhered to high density plastic backing (no wood) with flow through foam cushions
  • ❖ Bonding zinc plate
  • ❖ Heavy-duty, welded bow and stern eyes, bedded and sealed in polyurethane
  • ❖ Bronze high speed intake strainers
  • ❖ Transheild™ shipping cover
  • ❖ Fuel Tank - 100 gal nominal baffled aluminum

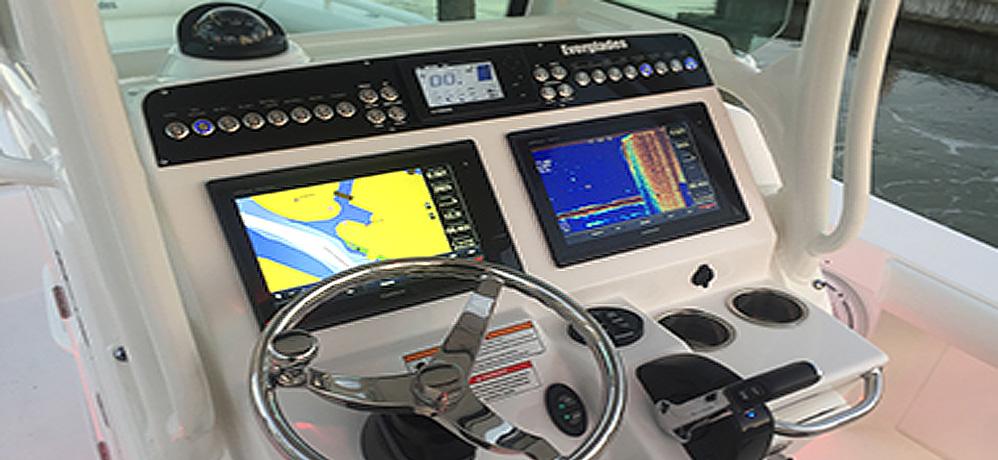

  • CONSOLE/HARDTOP

  • ❖ Console glove box/storage bin
  • ❖ Console handrails
  • ❖ Console power port with USB charging ports
  • ❖ Stainless steel steering wheel
  • ❖ Fire extinguisher (2)
  • ❖ Tempered glass, hydraulic sliding windshield with intelligent wiper and washer system
  • ❖ Stereo speakers mounted in the hard-top
  • ❖ Fiberglass hardtop with aluminum powder-coated frame includes blue and white LED lights, spreader lights, electronics box, (4) rod holders, ski pylon
  • ❖ Seastar Optimus Electronic Power Steering
  • ❖ Porta potty with dock side pump-out
  • ❖ Stainless steel console drink holders (2)
  • ❖ Canvas life jacket storage in hard top
  • DECK/COCKPIT

  • ❖ 8" pull-up cleats cast 316 stainless steel and through bolted (6)
  • ❖ Stereo speakers mounted in the deck
  • ❖ Stainless steel drink holders
  • ❖ Recessed cockpit drains
  • ❖ Cockpit coaming bolsters
  • ❖ Cockpit area - 91sf
  • FISHABILITY

  • ❖ Cooler - Built in 87qt and Storage for Yeti® Hopper
  • ❖ Circulating livewell with light and 3/8" clear acrylic lid with stainless steel friction hinges and latch - 26 gal
  • ❖ Fish box (fwd.) - 69gal
  • ❖ Stainless steel gunwale flush mounted rod holders bedded and through bolted (4)
  • ❖ Abundant space for electronics placement
  • MECHANICAL/ELECTRICAL

  • ❖ Automatic bilge pump(s)
  • ❖ High- water alarm
  • ❖ LED anchor light
  • ❖ LED navigation lights
  • ❖ Ritchie® compass
  • ❖ Electric horn
  • ❖ Custom stainless steel trim tabs with position indicator and auto retract (single cylinder)
  • ❖ Stereo - Fusion control head with Bluetooth and JL M-series speakers
  • ❖ Fresh-water washdown spigot
  • ❖ Raw-water washdown spigot
  • SEATING

  • ❖ Cushioned forward console seating
  • ❖ Bow seating with removable forward facing backrests and locking storage

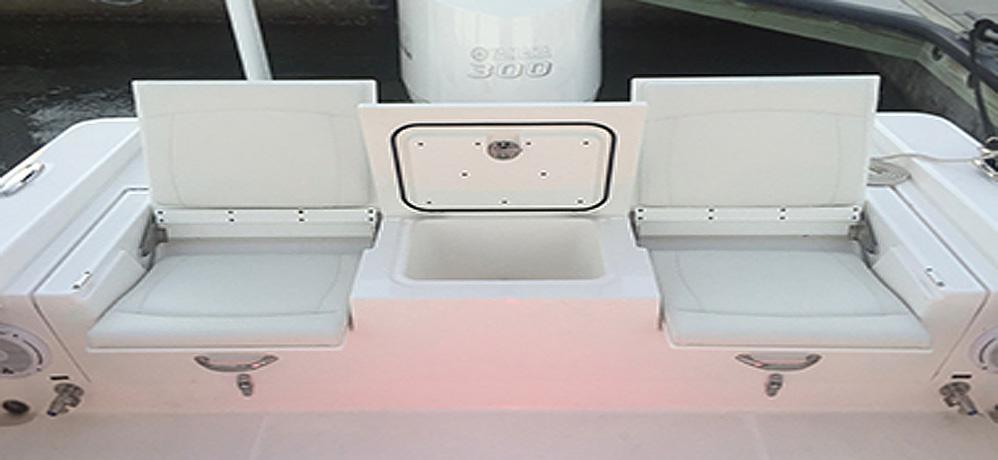

  • ❖ AFT folding 1/4 seats
  • ❖ Helm seat with armrest

可选配置

  • OPTIONS

  • ❖ Additional cup holders (2)
  • ❖ Additional cup/rod holder combo (2)
  • ❖ Outrigger package - 15' poles - Taco
  • ❖ Outrigger package - 16' poles - Lee
  • ❖ Outrigger quick-cam cleats
  • ❖ Underwater lights blue and white switchable
  • ❖ T&H Atlas™ jack plate
  • ❖ 10' Power Pole Blade®
  • ❖ Anti-Fatigue helm pad
  • ❖ CE Certification Available
  • ELECTRONICS

  • ❖ Garmin VHF 200 Black
  • ❖ Garmin VHF 300 Black
  • ❖ Garmin Upper station VHF wired GHS10
  • ❖ Garmin Upper station VHF wireless GHS20
  • ❖ Garmin GPSMAP® 7612xsv Chart plotter
  • ❖ Garmin GPSMAP® 7612xsv Dual displays
  • ❖ Garmin GSD® 25 Premium remote digital sounder
  • ❖ Garmin GT50M-TH
  • ❖ CHIRP Transducers
  • ❖ Garmin GMR 24 xHD marine radar
  • ❖ Garmin GMR 624 xHD2 marine radar
  • ❖ GXM 52 SiriusXM marine weather receiver (requires subscription)
  • ❖ SiriusXM radio (requires subscription)
  • ❖ Premier audio package upgrade
  • HULL COLOR - GEL COAT

  • ❖ All gel coat color options can be to the waterline or complete hull
  • ❖ Hardtop undersides can be matched to hull color (gel coat only)
  • ❖ White (Standard no charge)
  • ❖ Black
  • ❖ Reef Blue
  • ❖ Caribbean Blue
  • ❖ Ice Blue
  • ❖ Sky Blue
  • ❖ Navy Blue
  • ❖ Platinum
  • ❖ Sand
  • ❖ Mystic Green
  • HULL COLOR - PAINT

  • ❖ See your local dealer for and Everglades Awlgrip® paint chart
  • ENGINE PACKAGE

  • ❖ Yamaha Y-Cop® Immobilizer (Not compatible with Yamaha Helm Master)
  • ❖ All engine and per-rig kits include stainless steel propeller(s)
  • ❖ White painted engines
  • ❖ Pre-rig Yamaha (Command Link® Plus display)
  • ❖ Single Yamaha 250hp (Command Link® Plus display)
  • ❖ Single Yamaha 300hp (Command Link® Plus display)
  • CANVAS / UPHOLSTERY

  • ❖ Canvas color options: black, blue, silver and tan
  • ❖ Upholstery colors: standard white, grey accent, and beige accent
  • ❖ Forward console seat cover
  • ❖ Console Cover
  • ❖ Leaning post/helm seat cover
  • ❖ Mooring cover
